fieldbus connectors

Profinet, profibus, canbus, metalised, robust design, wide range, integrated termination resistor, simple assembly

Helmholz produces a comprehensive range of automation components ranging from decentralised I/O systems, switches and repeaters, gateways and firewalls, to integrated remote maintenance solutions. Founded in 1988, the business has been at the forefront of developing user friendly and innovative automation components. Initially established as an engineering company for software and plant commissioning, two years later the first Siemens S5 products were launched. Today employing 85 people the company serves its worldwide customers through a network of sales offices and distributors. Assembly and inspection takes place at the company headquarters in Großenseebach, Germany. High standards of quality and performance, in accordance to ISO 9001:2015, have provided the foundation for Helmhoz success over the past 30 years.

profibus Connectors

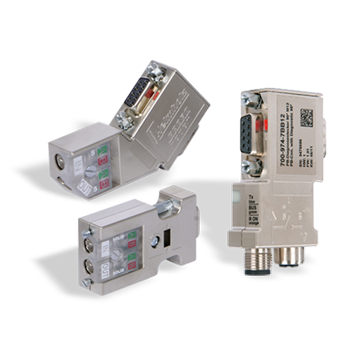

Metalised Profibus Network Connectors

The Helmholz Profibus connectors come in a wide range of designs, configurations and features. Options includes 90o, 35o or 0o, screw terminals or simple "EasyConnect" assembly, diagnostic LEDs, integrated terminating resistor, PG connection or M12 connectors.

  • Metalised Housing
  • 90o, 35o or 0o
  • Integrated Terminating Resistor
  • No Loose Parts
  • EasyConnect Technology

Technical
Downloads
Linked Products
Transmission Speed12Mbps
Connector Type9 Pin SUB-D
Connector Orientation90o
35o
0o
Termination ResistorIntegrated
Cable TypeProfibus
Cable Max Outer Diameter8mm
Protection RatingIP20
Operating Temperature-25oC to +80oC
CatalogueHelmholz Profibus Connectors DatasheetVarioushttps://www.helmholz.de/en/products/fieldbus-applications/profibus/stecker/
Helmholz Product Summary BrochurePDF 3.2MB
.
DrawingsCAD DrawingsVarioushttps://www.helmholz.de/en/download/
