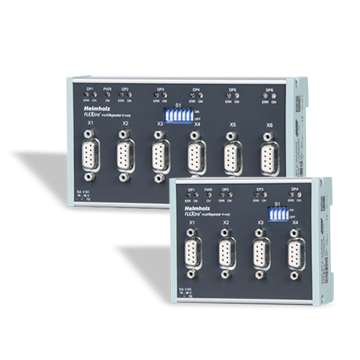

FLEXtra Profibus-DP Multi Repeater

The FLEXtra multiRepeater is a full PROFIBUS repeater designed for DIN rail mounting. It regenerates the incoming electrical signal on a bus line and re-transmits it. The FLEXtra® twinRepeater supports data rates from 9.6kbps to 12Mbps and recognizes them automatically. It can be used for bus extension, to increase the number of participants, and to expand the system. Use in MPI networks is supported, as is Star networks. The status LEDs provide a quick overview of the current bus status. Electrical isolation between the PROFIBUS segments is provided. Dip switches allow the individual segments to be turned off, and main switch for turning off all segments. Two models are available offering 4 way or 6 way segment bus extension.

• Bus Extensions Or Star Connections
• Increase Nr Of Participants
• MPI Networks Supported
• Status LEDs, Electrical Isolation
• 4 Way or 6 Way Models
