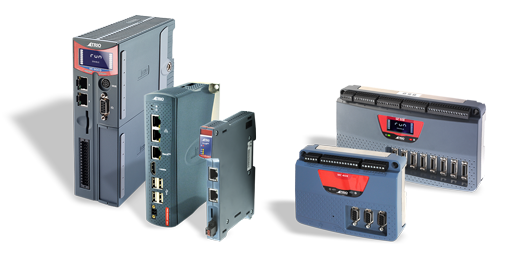

Motion control

1-64 axes, high speed, linear, circular, helical or spherical interpolation, user friendly basic programming or iec61131-3, motion + pC solution

Trio Motion Technology is a specialised designer of high performance motion control technology for automation applications, encompassing the control of moving parts of machines, robots or motors, with high precision. The main components involved typically include a motion controller, drives and motors or actuators. Trio Motion Technology has been manufacturing high-quality motion controllers branded Motion Coordinators since 1987. Their comprehensive range allows economical, flexible and seamless control of 1 to 128 axes of servo motors, stepper motors, piezo motors or hydraulic systems. Trio products can be found in virtually every servo and stepper application.

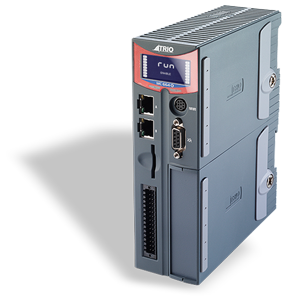

MC664

Motion Controller

The MC664 uses a high performance Quad Core Cortex A9 1GHz Processor and offers motion control of up to 64 Servo or Stepper axes and an additional 64 virtual axes. The MC664 also offers 1024 digital inputs, 1024 digital outputs, 32 analogue inputs and 16 analogue outputs. EtherCAT high speed communications are integrated as standard. User programs can be written in Trio's multi-tasking TrioBASIC language using the powerful MotionPerfect development suite. Additionally IEC61131-3 programming language is available for softPLC functionality

  • High Performance Motion
  • 64 Axes Motion Control
  • Integrated EtherCAT Communications
  • Linear, Circular, Helical & Spherical Interpolation
  • Multi-Tasking BASIC programming
  • IEC61131-3 softPLC

Technical
Downloads
Linked Products
Supply Voltage24VDC
Maximum Axes64x Networked Axes
128x Virtual Axes
25x Discrete Wired Axes
Maximum Virtual Axes128
ProcessorQuad Core Cortex A9
Clock Frequency1GHz
Position Register Accuracy64 Bit
Real Time ClockYes
Flash Memory32 x 16000 Values
User Memory32 MB
Table Memory512,000 Values
+/- 10V Analogue Outputs0
0 - 10V Analogue Inputs2
Digital Bi-Directional Inputs/Outputs8
Digital Inputs8
Registration Inputs8
CommunicationsCANopen
DeviceNet
Ethernet
Ethernet/IP
MODBUS-RTU
MODBUS-TCP/IP
CC-Link
Anybus
Bluetooth
RS232
RS485
CatalogueMC664 DatasheetPDF 7.7MB
Trio Motion Technology Product BrochurePDF 59.7MB
ManualMC664 Quick Start GuidePDF 1.2MB
Hardware OverviewPDF 1.9MB
EMC Installation GuidePDF 1.1MB
SoftwareTrio Software ToolsVarioushttp://www.triomotion.uk/public/products/p862.php
Dimensions2D and 3D CAD DrawingsZIP 10.7MB
CertificatesEC Declaration Of Conformity - P821PDF 300KB
