Helmholz produces a comprehensive range of automation components ranging from decentralised I/O systems, switches and repeaters, gateways and firewalls, to integrated remote maintenance solutions. Founded in 1988, the business has been at the forefront of developing user friendly and innovative automation components. Initially established as an engineering company for software and plant commissioning, two years later the first Siemens S5 products were launched. Today employing 85 people the company serves its worldwide customers through a network of sales offices and distributors. Assembly and inspection takes place at the company headquarters in Großenseebach, Germany. High standards of quality and performance, in accordance to ISO 9001:2015, have provided the foundation for Helmhoz success over the past 30 years.

Profinet switches

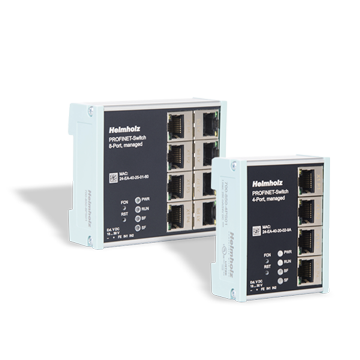

Industrial Managed Profinet Switches

PROFINET switches are used to prioritise PROFINET frame traffic in a machine network. These managed switches can differentiate whether the frame is a web query, FTP file transmission, media stream, or a PROFINET frame. In the case of a high transmission load, the important frames can be prioritised in order to prevent frame losses. Supported PROFINET protocols include as LLPD, DCP & SNMP. Diagnostic alarms can be easily configured and administered.

  • ProfiNet Conformance Class B
  • Quick & Simple Configuration
  • Media Redundancy, MRP Client
  • Port Mirroring
  • Managed Switch, RJ45 Ports, 100Mbps

Technical
Downloads
Linked Products
ProfiNet Ports4
8
16
Physical layerEthernet
FeaturesMedia Redundancy Protocol
Automatic Addressing
Status LEDs4x LEDs - Function Status
8x LEDs - Ethernet Status
Power Supply12 - 30VDC
Protection Rating ButtonIP20
Operating Temperature-40 to +75oC
Catalogue4x Port ProfiNet Switch DatasheetPDF 1.7MB
8x Port ProfiNet Switch DatasheetPDF 2.0MB
16x Port ProfiNet Switch DatasheetPDF 1.0MB
ProfiNet Switch FlierPDF 2.9MB
ProfiNet Product Overview FlierPDF 4.9MB
Helmholz Product Summary BrochurePDF 3.2MB
ManualProfiNet Switch Quick Start GuidePDF 6.0MB
SoftwareSoftware, Drivers & Firmwarehttps://www.helmholz.de/en/download/
Dimensions3D CAD Fileshttps://www.helmholz.de/en/download/
