magnetic tape

incremental or absolute, high repeat accuracy, single or multiple tracks, suitable for harsh environments

SIKO has more than five decades of experience in length, angle and speed measurement. Due to high demands from their customers, in both the industrial and mechanical engineering sectors, this has resulted in outstanding quality, precision and functionality of the Siko products. Certified to ISO 9001 : 2008, Siko is a global company with five subsidiaries and approximately 60 worldwide distributors, ensuring direct sales and technical support to customers both nationally and internationally. Globally, Siko employ more 200 staff. Siko’s measurement technology product portfolio encompasses five product ranges: Digital position indicators and hand wheels (PositionLine), Rotary encoders, geared potentiometers and measurement indicators (RotoLine), Wire-actuated encoders (LinearLine), Actuators (DriveLine) and Magnetic measuring systems (Magline). Continually innovating, Siko is at the forefront of sensing and measurement technology.

magnetic tape

Incremental or Absolute Distance Measurement

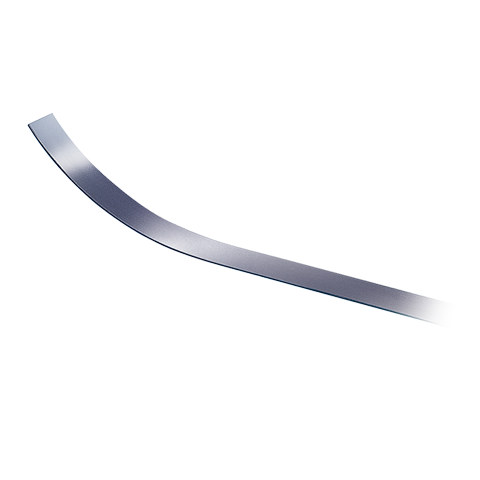

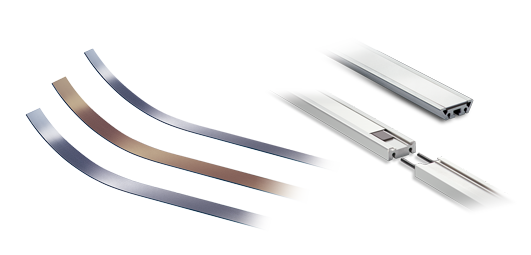

The Magnetic Tape produced by Siko consist of a flexible magnetically encoded plastic tape, which is permanently adhered to a steel carrier strip. It is offered in both incremental or absolute versions, with a variety of pole pitches, widths and sizes. As the interface between the magnetic tape and sensors are contactless, there are no wearing parts. In addition, the system is insensitive to dust, water and non-ferrous debris.

  • Incremental Or Absolute
  • Contactless - No Wearing Parts
  • Suitable For Harsh Environments
  • Simple Installation

Technical
Downloads
Linked Products
Pole Length1mm - 40mm
Accuracy Class±10µm - ±1mm
Tape Width5mm - 20mm
Maximum Length100m
Product ClassificationMicro
Basic
Macro
Measurement TypeIncremental
Absolute
OptionsCarrier Material
Adhesive Carrier Tape
Cover Strip
Reference Point
Profile Rail
CataloguesMB100/1 DatasheetPDF 253KB
.
MB200/1 DatasheetPDF 253KB
.
MB320/1 DatasheetPDF 253KB
.
MB400 DatasheetPDF 239KB
.
MB500/1 DatasheetPDF 232KB
.
MB2000 DatasheetPDF 263KB
.
MB4000 DatasheetPDF 215KB
.
MBA DatasheetPDF 258KB
.
MBA110/1 DatasheetPDF 236KB
.
MBA111 DatasheetPDF 238KB
.
MBA501 DatasheetPDF 258KB
.
MBAC501 DatasheetPDF 353KB
.
MBA511 DatasheetPDF 258KB
.
PS1 DatasheetPDF 224KB
.
PS Profile Rail DatasheetPDF 266KB
.
SB Protective Band DatasheetPDF 232KB
.
KV1C DatasheetPDF 288KB
.
Siko Product Overview BrochurePDF 3.4MB
.
Medical & Laboratory FlierPDF 592KB
.
ManualsFor all Manuals, User Guides, Installations Instructionshttps://www.siko-global.com/en-gb/products/magline-magnetic-linear-and-angular-measurement/magnetic-bands
Dimensions2D & 3D Configuratorhttps://siko-embedded.partcommunity.com/3d-cad-models/sso/magnetic-tapes-siko?info=siko%2Fmagline%2Fmagnetbaender
CertificatesISO 9001 Quality CertificatePDF 680KB
.
RoHS/Reach/WEEE DeclarationPDF 239KB
.
