Linear incremental transducers

incremental linear measurement, square or sinusoidal, wide range of strokes, sizes, resolutions and fixing options, high IP rating

Since 1968, Elap has been developing, manufacturing and marketing its range of counting, sensing, measuring and control products. Over the years, the product range has extended to include preset counters and displays, single and multi-axis positioners, PLC controllers, and a wide array of positioning sensors. These includes incremental and absolute rotary encoders, linear and rotary potentiometers, incremental transducers and optical scales, wire transducers, magnetic transducers and vibration sensors. The accuracy and reliability which are a feature of the Elap products is a result of advanced technological research, coupled with extensive experience. Each department within Elap follows a defined quality process which ensures an excellent product quality and a high degree of customer flexibility and service. Accurate order processing and on-time delivery have always been a key focus, and assembly operations are carried out by qualified and experienced personnel. All Elap products are carefully calibrated and tested before shipment. Elap invests each year into R&D, with new products and technical advances being offered. Applications sectors include sheet working machinery, glass, wood, paper machinery, plastic and textile machines, food processing and many more.

linear transducers

Incremental Measurement For Linear Movement

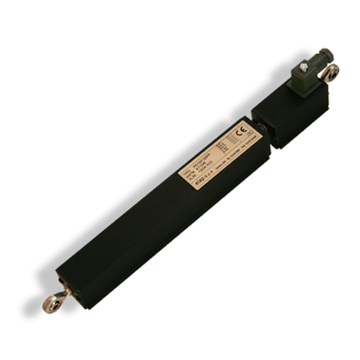

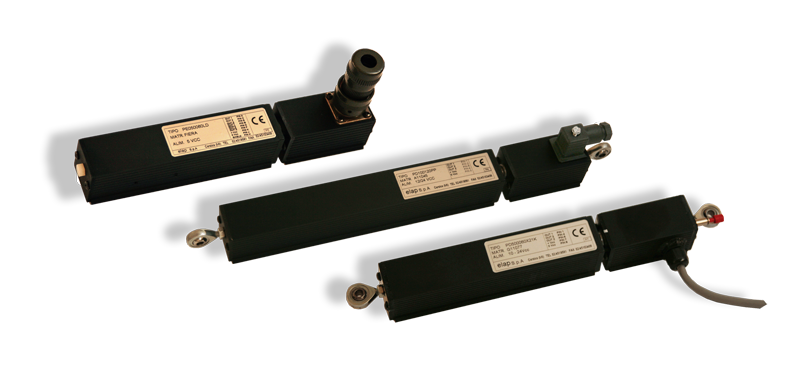

Elap linear incremental tranducers are commonly used in industrial applications for incremental positional measurement. The Elap range includes a variety of sizes, strokes, resolutions and mounting fittings, to meet the specific needs of the application. They are available in square section bodies, and offer measuring strokes from 60 to 990 mm. Outputs include square pulses or sinusoidal waveforms.

  • Incremental Measurement
  • Strokes 60 - 990mm
  • Square or Sinusoidal Output
  • Long Lifetime

Technical
Downloads
Linked Products
Stroke60 - 990mm
Max Linear SpeedUp To 120m/min
Case MaterialAluminium
Max Acceleration Rate40m/s2
Body DesignSquare
Lighting SourceLED
Resolution0.05mm
0.01mm
0.005mm
Supply Voltage5VDC
8/24VDC
Output SignalSquare
Sinusoidal
Output CircuitPush-Pull
Open Collector NPN
Line Driver
Sinusoidal
Zero ReferenceMid-Stroke
At Each End
Customised Position
Enclosure RatingIP64
IP65
Shaft Diameter5mm
6mm
8mm
Operating Temperature0oC to +50oC
CataloguesPD / PE / PS DatasheetPDF 652KB
.
Elap Overview BrochurePDF 4.4MB
.
DimensionsPD / PE / PS DimensionsPDF 72KB
.

Technical Information

Product technical details and product downloads

Click Here
