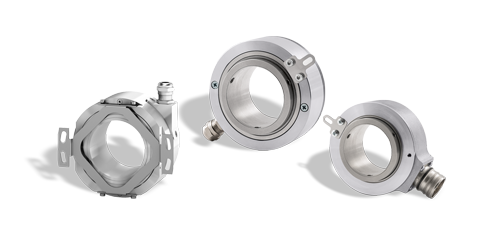

HOIST & large motor encoders

incremental & absolute, low profile, through hollow bore, high resolution, wide temperature range

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

C80

Robust Motor Feedback Encoder

Ideally suited to large size motors, the C80 incremental encoder offers a flat design in a robust die cast aluminium 80mm diameter body, with a stainless steel shaft. With a maximum through hollow bore of 30mm diameter, the C80 offers a wide range of resolutions, up to 4096ppr and uses optical sensing.

  • 80mm Body Diameter
  • Optical Sensing
  • Max Resolution 4096ppr
  • Wide Range of Resolutions
  • 30mm Max Diameter Through Hollow Bore

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter80mm
Maximum Resolution4096ppr
Output CircuitPush-Pull
Line Driver
Universal Circuit
Supply Voltage5VDC
10 - 30VDC
5 - 30VDC
Shaft DesignThrough Hollow Bore
Max Shaft Diameter30mm
Electrical ConnectionCable
M23 Connector
Operating Temperature-40oC - +100oC
Maximum Rotational Speed6000rpm
Maximum Enclosure RatingIP65
OptionsCable Length
M23 Connector
IP Rating
Shaft Diameter
CatalogueC80 DatasheetPDF 333KB
.
Lika Product Overview BrochurePDF 6.0MB
.
Lika Product News FlierPDF 957KB
.
ManualC80 Installation ManualPDF 3.5MB
.
CertificatesEU Declaration Of ConformityPDF 789KB
.
UL Certificate Of CompliancePDF 415KB
.
RoHs/WEEE Declaration Of ConformityPDF 425KB
.
Reach Declaration Of ConformityPDF 6.8MB
.
ISO 9001 Quality CertificatePDF 460KB
.
