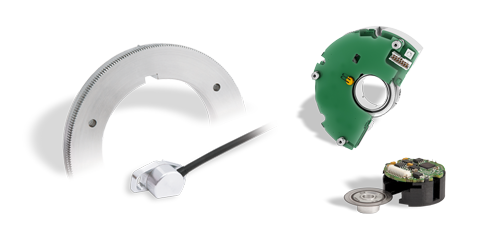

integrated bearingless encoders

for spindles, high speed motors, robotics and medical equipment, incremental or absolute, single or multi-turn, compact size, low profile, high resolution

Founded in 1982, Lika Electronic develops and manufactures a wide range of sensing and measurement devices. The range includes optical and magnetic rotary and linear encoders, incremental & absolute sensors, linear and rotary magnetic measurement systems, rotary actuators, displays, signal converters and encoder interfaces. Starting as a family-owned business, over the years Lika Electronic has grown to become a forward thinking, innovative and global company and has become one of the leading manufacturers of optical encoders and magnetic measurement systems. Software development and component design are entirely performed within the company. Bespoke production machinery and test equipment are often engineered and built internally to satisfy specific needs. Lika Electronic is committed to being a step ahead and always at the forefront of innovation, looking to the future with the enthusiasm that steers the company towards new opportunities. Lika is certified to ISO 9001:2000 quality management system and is now committed to adopt an environmental management system complying with ISO 14001:2004. All Lika’s products are designed and manufactured to fully meet the requirements of CE, RoHS and REACH directives, most of them are UL and CSA compliant too. ATEX certified solutions suitable to be integrated into potential explosive environments and hazardous areas are also available.

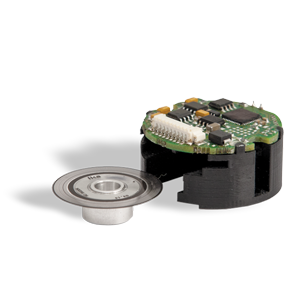

AMM36

Absolute Kit Encoder

Compact frameless absolute encoder typically used on servo motors, robotics and medical equipment. Available in either single or multi-turn versions, with a 35mm body diameter. Offer resolutions up to 21 bit, using optical sensing.

  • 35mm Body Diameter
  • Optical Sensing
  • Single or Multi-turn
  • Max Resolution 22 Bit
  • Bore Diameter 6mm or 0.25In

Technical
Downloads
Linked Products
Sensing MethodOptical
Body Diameter35mm
MeasurementSingle or Multi-Turn
Maximum Resolution22 Bit
Output CircuitBiSS-C
SSI + 1Vpp
RS485
Supply Voltage5VDC
10 - 30VDC
Shaft DesignHollow Bore
Shaft Diameter6mm or 0.25In
Electrical ConnectionPCB Connector
Operating Temperature-20oC - +100oC
Maximum Enclosure RatingIP00
OptionsCalibration Setup Interface
Calibration Cable
Disk Spacer
